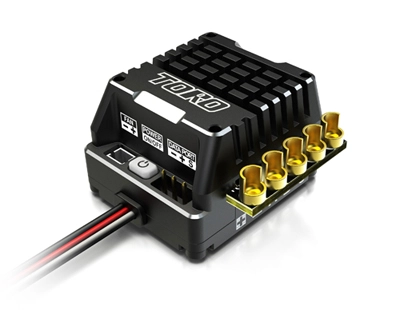

TORO TS160 Competition brushless speed controller is designed for 1/10th applications. It operates 2S to 3S LiPo batteries with a compact size of 30.6*35.6*22.5mm and it features a high-voltage BEC system with selectable 6V or 7.4V output, internal power capacitors, an optional high-speed fan unit including fan guard and all alloy case construction.

For 1S use this speed control requires an external BEC booster.

SPECIFICATIONS

Constant/Burst Current – 150A/600A
Motor Compatible – Brushless Sensor & Sensorless ESC
Car Compatible – 1/10 and 1/12 all competitions, 1/10 and 1/8 crawlers
Motor Limits – 2S Lipo or 4-6S NiMH >=3.5T(1/10 on-road),>=5.5T(1/10 off-road)
3S Lipo or 7-9S NiMH >=5.5T(1/10 on-road), >=8.5T(1/10 off-road)

Resistance – 0.00018ohm
Battery Cell Count – 4-9S NiMH or 2-3S LiPo
BEC Output – 6V/7.4V@5A,switch
Size – 30.6×35.6×22.5mm (LxWxH)
Weight – 45g (w/o wire)
FAN – [email protected] , MAX 12.6V

Spec

• Brand: SkyRC
• Part No: SCH-SK-300064-01
• Barcode: 5051294100599
• Motor Type: Brushless
• LiPo Compatible: Yes
